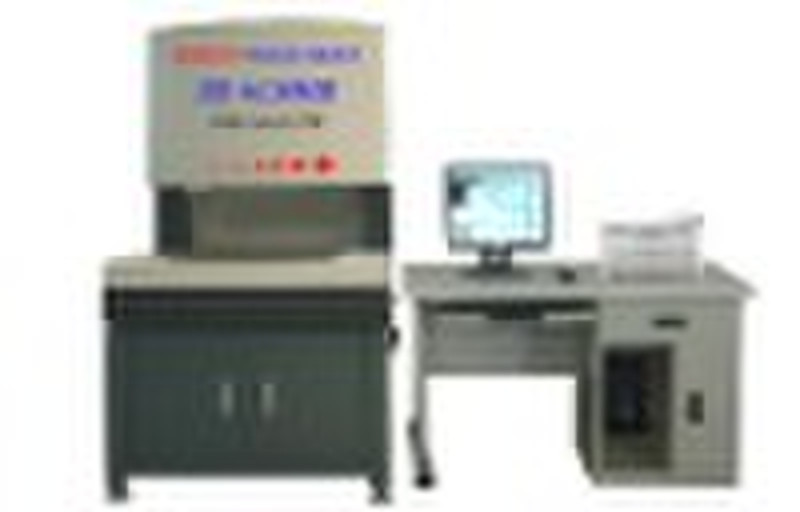

HLS 400 3D Laser Scanning Machine

HLS 400 High Precision 3D Laser Scanning Machine HLS400 High Precision 3D Laser Scanning Machine is launched by Suzhou Easson Group and Scan Direct Ltd(Israel) which is a high precision(0.002mm) 3D laser scanning equipment. This machine is also integrated with EVC Quick Vision and ES CMM .This system is widely used for high precision scanning and copying, embossing, woodcarving, decoration, knurling, ceramic, sole, measurement axis copying, quality control. Technical Data: Repeatability: 2um Platform Load: 38kg Operating mode: automation Weight: 510 kg Scanning Precision: 0.001mm X/Y/Z axis measurement accuracy: (3+L/100)um Driver system: Full Closed Loop CNC Control Laser system: CopyMate Hight Precision Scan system(Israel) Dimension(L/W/H): 910 x 860 x 1580mm X/Y/Z traveling range: 400 x 300 x 250mm Platform: High density granite platform (00 Grade) Servo System: Panasonic Servo Motors and amplifier/Taiwan Pou Yuen control Vision Measurement System: a. Telecetric Lens b. 0.7x up to 4.5x optical enlargement ,20x up to 125x image enlargement c. Easson high-resolution CCD(1/2CCD Sensor and special DPS) Measuring System(optional): Renishaw(England) High Precision Touch Probe for 3D Measurement System *CopyMate Digitizing and Milling Solutions* CopyMate is a new approach that makes the complex task of copying a 3D part simple. By utilizing a laser probe, CopyMate scans 3D parts quickly and efficiently. Data is scanned and automatically converted into a computerized model. CopyMate provides a trouble-free way to edit the model and customize it for production and reverse engineering. Scanning and machining are handled by a user-friendly wizard that guides the user through the process of job setup and generating tool paths. With CopyMate, copying 3D parts is as simple as using a photo-copying machine! *CopyMate main features* High speed point cloud collection Wide range of machines High accuracy Data filtering Automatic surface generation Surface manipulation 4th axis scanning (Ring mode) Milling 3D and 4th Axis(Optional) Tool path management Generic toolpath posting Laser probe ***Whether you need to create a prototype or have an existing part, the task of converting a real part into a digital model has been a formidable one. CopyMate is a new approach that makes the complex task of copying a 3D part simple. Scanning 3D parts is handled quickly and efficiently. ***A wide range of machines, make CopyMate the ideal solution whether you need to scan a coin or an automotive part. ***CopyMate solutions can be specifically picked based on accuracy, speed, size and price.
